Main schema CsSpSupportWs.xsd
Namespace http://csspsupport.sigserv.aaasec.com/
Properties
attribute form default: unqualified
element form default: unqualified
version: 1.0
Element tns:completeSigning
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__completeSigning_signResponse CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__completeSigning
Type tns:completeSigning
Properties
content: complex
Model signResponse{0,1}
Children signResponse
Instance

<tns:completeSigning xmlns:tns="http://csspsupport.sigserv.aaasec.com/">
  <signResponse>{0,1}</signResponse>
</tns:completeSigning>
Source

<xs:element name="completeSigning" type="tns:completeSigning"/>
Element tns:completeSigning / signResponse
Namespace No namespace
Diagram
Diagram
Type xs:base64Binary
Properties
content: simple
minOccurs: 0
nillable: true
Source

<xs:element name="signResponse" type="xs:base64Binary" nillable="true" minOccurs="0"/>
Element tns:completeSigningResponse
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__completeSigningResponse_return CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__completeSigningResponse
Type tns:completeSigningResponse
Properties
content: complex
Model return{0,1}
Children return
Instance

<tns:completeSigningResponse xmlns:tns="http://csspsupport.sigserv.aaasec.com/">
  <return>{0,1}</return>
</tns:completeSigningResponse>
Source

<xs:element name="completeSigningResponse" type="tns:completeSigningResponse"/>

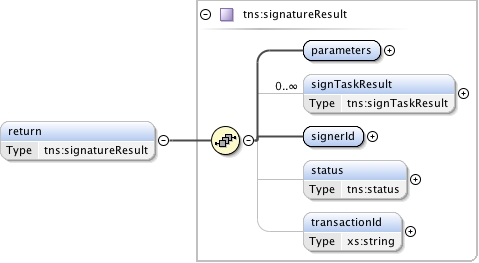

Element tns:completeSigningResponse / return
Namespace No namespace
Diagram

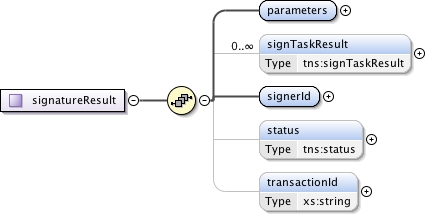

Diagram CsSpSupportWs_xsd.tmp#signatureResult_parameters CsSpSupportWs_xsd.tmp#signatureResult_signTaskResult CsSpSupportWs_xsd.tmp#signatureResult_signerId CsSpSupportWs_xsd.tmp#signatureResult_status CsSpSupportWs_xsd.tmp#signatureResult_transactionId CsSpSupportWs_xsd.tmp#signatureResult
Type tns:signatureResult
Properties
content: complex
minOccurs: 0
Model parameters , signTaskResult* , signerId , status{0,1} , transactionId{0,1}
Children parameters, signTaskResult, signerId, status, transactionId
Instance

<return>
  <parameters>{1,1}</parameters>
  <signTaskResult>{0,unbounded}</signTaskResult>
  <signerId>{1,1}</signerId>
  <status>{0,1}</status>
  <transactionId>{0,1}</transactionId>
</return>
Source

<xs:element name="return" type="tns:signatureResult" minOccurs="0"/>
Element tns:signatureResult / parameters
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signatureResult_signatureResult_parameters_entry
Properties
content: complex
Model entry*
Children entry
Instance

<parameters>
  <entry>{0,unbounded}</entry>
</parameters>
Source

<xs:element name="parameters">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="key" minOccurs="0" type="xs:string"/>
            <xs:element name="value" minOccurs="0" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signatureResult / parameters / entry
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signatureResult_signatureResult_parameters_signatureResult_signatureResult_parameters_entry_key CsSpSupportWs_xsd.tmp#signatureResult_signatureResult_parameters_signatureResult_signatureResult_parameters_entry_value
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model key{0,1} , value{0,1}
Children key, value
Instance

<entry>
  <key>{0,1}</key>
  <value>{0,1}</value>
</entry>
Source

<xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="key" minOccurs="0" type="xs:string"/>
      <xs:element name="value" minOccurs="0" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signatureResult / parameters / entry / key
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="key" minOccurs="0" type="xs:string"/>
Element tns:signatureResult / parameters / entry / value
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="value" minOccurs="0" type="xs:string"/>

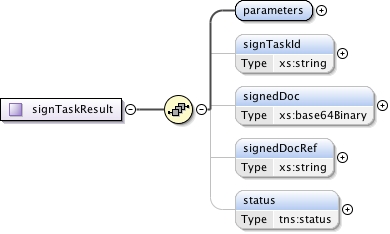

Element tns:signatureResult / signTaskResult
Namespace No namespace
Diagram

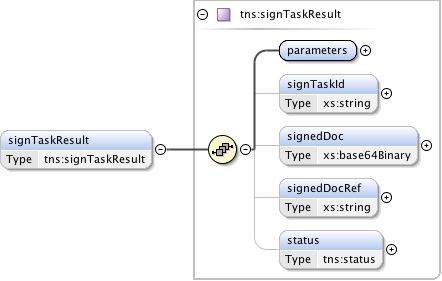

Diagram CsSpSupportWs_xsd.tmp#signTaskResult_parameters CsSpSupportWs_xsd.tmp#signTaskResult_signTaskId CsSpSupportWs_xsd.tmp#signTaskResult_signedDoc CsSpSupportWs_xsd.tmp#signTaskResult_signedDocRef CsSpSupportWs_xsd.tmp#signTaskResult_status CsSpSupportWs_xsd.tmp#signTaskResult
Type tns:signTaskResult
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
nillable: true
Model parameters , signTaskId{0,1} , signedDoc{0,1} , signedDocRef{0,1} , status{0,1}
Children parameters, signTaskId, signedDoc, signedDocRef, status
Instance

<signTaskResult>
  <parameters>{1,1}</parameters>
  <signTaskId>{0,1}</signTaskId>
  <signedDoc>{0,1}</signedDoc>
  <signedDocRef>{0,1}</signedDocRef>
  <status>{0,1}</status>
</signTaskResult>
Source

<xs:element name="signTaskResult" type="tns:signTaskResult" nillable="true" minOccurs="0" maxOccurs="unbounded"/>
Element tns:signTaskResult / parameters
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signTaskResult_signTaskResult_parameters_entry
Properties
content: complex
Model entry*
Children entry
Instance

<parameters>
  <entry>{0,unbounded}</entry>
</parameters>
Source

<xs:element name="parameters">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="key" minOccurs="0" type="xs:string"/>
            <xs:element name="value" minOccurs="0" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signTaskResult / parameters / entry
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signTaskResult_signTaskResult_parameters_signTaskResult_signTaskResult_parameters_entry_key CsSpSupportWs_xsd.tmp#signTaskResult_signTaskResult_parameters_signTaskResult_signTaskResult_parameters_entry_value
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model key{0,1} , value{0,1}
Children key, value
Instance

<entry>
  <key>{0,1}</key>
  <value>{0,1}</value>
</entry>
Source

<xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="key" minOccurs="0" type="xs:string"/>
      <xs:element name="value" minOccurs="0" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signTaskResult / parameters / entry / key
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="key" minOccurs="0" type="xs:string"/>
Element tns:signTaskResult / parameters / entry / value
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="value" minOccurs="0" type="xs:string"/>
Element tns:signTaskResult / signTaskId
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="signTaskId" type="xs:string" minOccurs="0"/>
Element tns:signTaskResult / signedDoc
Namespace No namespace
Diagram
Diagram
Type xs:base64Binary
Properties
content: simple
minOccurs: 0
Source

<xs:element name="signedDoc" type="xs:base64Binary" minOccurs="0"/>
Element tns:signTaskResult / signedDocRef
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="signedDocRef" type="xs:string" minOccurs="0"/>

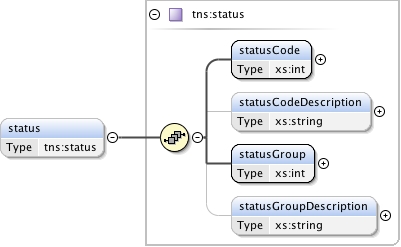

Element tns:signTaskResult / status
Namespace No namespace
Diagram

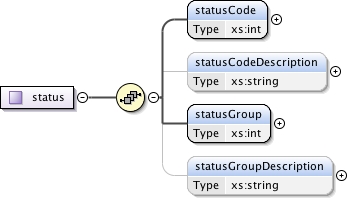

Diagram CsSpSupportWs_xsd.tmp#status_statusCode CsSpSupportWs_xsd.tmp#status_statusCodeDescription CsSpSupportWs_xsd.tmp#status_statusGroup CsSpSupportWs_xsd.tmp#status_statusGroupDescription CsSpSupportWs_xsd.tmp#status
Type tns:status
Properties
content: complex
minOccurs: 0
Model statusCode , statusCodeDescription{0,1} , statusGroup , statusGroupDescription{0,1}
Children statusCode, statusCodeDescription, statusGroup, statusGroupDescription
Instance

<status>
  <statusCode>{1,1}</statusCode>
  <statusCodeDescription>{0,1}</statusCodeDescription>
  <statusGroup>{1,1}</statusGroup>
  <statusGroupDescription>{0,1}</statusGroupDescription>
</status>
Source

<xs:element name="status" type="tns:status" minOccurs="0"/>
Element tns:status / statusCode
Namespace No namespace
Diagram
Diagram
Type xs:int
Properties
content: simple
Source

<xs:element name="statusCode" type="xs:int"/>
Element tns:status / statusCodeDescription
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="statusCodeDescription" type="xs:string" minOccurs="0"/>
Element tns:status / statusGroup
Namespace No namespace
Diagram
Diagram
Type xs:int
Properties
content: simple
Source

<xs:element name="statusGroup" type="xs:int"/>
Element tns:status / statusGroupDescription
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="statusGroupDescription" type="xs:string" minOccurs="0"/>
Element tns:signatureResult / signerId
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signatureResult_signatureResult_signerId_entry
Properties
content: complex
Model entry*
Children entry
Instance

<signerId>
  <entry>{0,unbounded}</entry>
</signerId>
Source

<xs:element name="signerId">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="key" minOccurs="0" type="xs:string"/>
            <xs:element name="value" minOccurs="0" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signatureResult / signerId / entry
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signatureResult_signatureResult_signerId_signatureResult_signatureResult_signerId_entry_key CsSpSupportWs_xsd.tmp#signatureResult_signatureResult_signerId_signatureResult_signatureResult_signerId_entry_value
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model key{0,1} , value{0,1}
Children key, value
Instance

<entry>
  <key>{0,1}</key>
  <value>{0,1}</value>
</entry>
Source

<xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="key" minOccurs="0" type="xs:string"/>
      <xs:element name="value" minOccurs="0" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signatureResult / signerId / entry / key
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="key" minOccurs="0" type="xs:string"/>
Element tns:signatureResult / signerId / entry / value
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="value" minOccurs="0" type="xs:string"/>
Element tns:signatureResult / status
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#status_statusCode CsSpSupportWs_xsd.tmp#status_statusCodeDescription CsSpSupportWs_xsd.tmp#status_statusGroup CsSpSupportWs_xsd.tmp#status_statusGroupDescription CsSpSupportWs_xsd.tmp#status
Type tns:status
Properties
content: complex
minOccurs: 0
Model statusCode , statusCodeDescription{0,1} , statusGroup , statusGroupDescription{0,1}
Children statusCode, statusCodeDescription, statusGroup, statusGroupDescription
Instance

<status>
  <statusCode>{1,1}</statusCode>
  <statusCodeDescription>{0,1}</statusCodeDescription>
  <statusGroup>{1,1}</statusGroup>
  <statusGroupDescription>{0,1}</statusGroupDescription>
</status>
Source

<xs:element name="status" type="tns:status" minOccurs="0"/>
Element tns:signatureResult / transactionId
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="transactionId" type="xs:string" minOccurs="0"/>
Element tns:signRequest
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__signRequest_signRequestParams CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__signRequest
Type tns:signRequest
Properties
content: complex
Model signRequestParams{0,1}
Children signRequestParams
Instance

<tns:signRequest xmlns:tns="http://csspsupport.sigserv.aaasec.com/">
  <signRequestParams>{0,1}</signRequestParams>
</tns:signRequest>
Source

<xs:element name="signRequest" type="tns:signRequest"/>

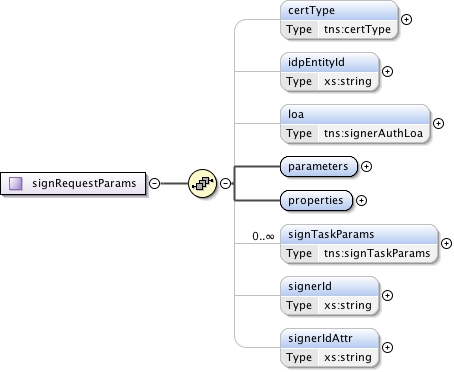

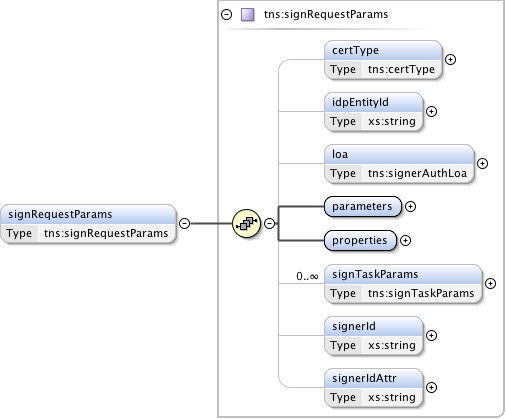

Element tns:signRequest / signRequestParams
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signRequestParams_certType CsSpSupportWs_xsd.tmp#signRequestParams_idpEntityId CsSpSupportWs_xsd.tmp#signRequestParams_loa CsSpSupportWs_xsd.tmp#signRequestParams_parameters CsSpSupportWs_xsd.tmp#signRequestParams_properties CsSpSupportWs_xsd.tmp#signRequestParams_signTaskParams CsSpSupportWs_xsd.tmp#signRequestParams_signerId CsSpSupportWs_xsd.tmp#signRequestParams_signerIdAttr CsSpSupportWs_xsd.tmp#signRequestParams
Type tns:signRequestParams
Properties
content: complex
minOccurs: 0
Model certType{0,1} , idpEntityId{0,1} , loa{0,1} , parameters , properties , signTaskParams* , signerId{0,1} , signerIdAttr{0,1}
Children certType, idpEntityId, loa, parameters, properties, signTaskParams, signerId, signerIdAttr
Instance

<signRequestParams>
  <certType>{0,1}</certType>
  <idpEntityId>{0,1}</idpEntityId>
  <loa>{0,1}</loa>
  <parameters>{1,1}</parameters>
  <properties>{1,1}</properties>
  <signTaskParams>{0,unbounded}</signTaskParams>
  <signerId>{0,1}</signerId>
  <signerIdAttr>{0,1}</signerIdAttr>
</signRequestParams>
Source

<xs:element name="signRequestParams" type="tns:signRequestParams" minOccurs="0"/>
Element tns:signRequestParams / certType
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#certType
Type tns:certType
Properties
content: simple
minOccurs: 0
Facets
enumeration PKC
enumeration QC
enumeration QC_SSCD
Source

<xs:element name="certType" type="tns:certType" minOccurs="0"/>
Element tns:signRequestParams / idpEntityId
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="idpEntityId" type="xs:string" minOccurs="0"/>
Element tns:signRequestParams / loa
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signerAuthLoa
Type tns:signerAuthLoa
Properties
content: simple
minOccurs: 0
Facets
enumeration loa1
enumeration loa2
enumeration loa3
enumeration loa4
Source

<xs:element name="loa" type="tns:signerAuthLoa" minOccurs="0"/>
Element tns:signRequestParams / parameters
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signRequestParams_signRequestParams_parameters_entry
Properties
content: complex
Model entry*
Children entry
Instance

<parameters>
  <entry>{0,unbounded}</entry>
</parameters>
Source

<xs:element name="parameters">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="key" minOccurs="0" type="xs:string"/>
            <xs:element name="value" minOccurs="0" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signRequestParams / parameters / entry
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signRequestParams_signRequestParams_parameters_signRequestParams_signRequestParams_parameters_entry_key CsSpSupportWs_xsd.tmp#signRequestParams_signRequestParams_parameters_signRequestParams_signRequestParams_parameters_entry_value
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model key{0,1} , value{0,1}
Children key, value
Instance

<entry>
  <key>{0,1}</key>
  <value>{0,1}</value>
</entry>
Source

<xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="key" minOccurs="0" type="xs:string"/>
      <xs:element name="value" minOccurs="0" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signRequestParams / parameters / entry / key
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="key" minOccurs="0" type="xs:string"/>
Element tns:signRequestParams / parameters / entry / value
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="value" minOccurs="0" type="xs:string"/>
Element tns:signRequestParams / properties
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signRequestParams_signRequestParams_properties_entry
Properties
content: complex
Model entry*
Children entry
Instance

<properties>
  <entry>{0,unbounded}</entry>
</properties>
Source

<xs:element name="properties">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="key" minOccurs="0" type="tns:property"/>
            <xs:element name="value" minOccurs="0" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signRequestParams / properties / entry
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signRequestParams_signRequestParams_properties_signRequestParams_signRequestParams_properties_entry_key CsSpSupportWs_xsd.tmp#signRequestParams_signRequestParams_properties_signRequestParams_signRequestParams_properties_entry_value
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model key{0,1} , value{0,1}
Children key, value
Instance

<entry>
  <key>{0,1}</key>
  <value>{0,1}</value>
</entry>
Source

<xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="key" minOccurs="0" type="tns:property"/>
      <xs:element name="value" minOccurs="0" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signRequestParams / properties / entry / key
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#property
Type tns:property
Properties
content: simple
minOccurs: 0
Facets
enumeration returnUrl
enumeration requestedAlgorithm
enumeration signMessage
enumeration spEntityId
enumeration requestedAttributes
Source

<xs:element name="key" minOccurs="0" type="tns:property"/>
Element tns:signRequestParams / properties / entry / value
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="value" minOccurs="0" type="xs:string"/>

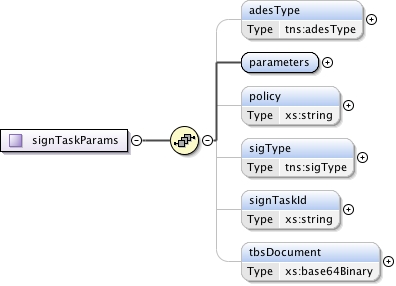

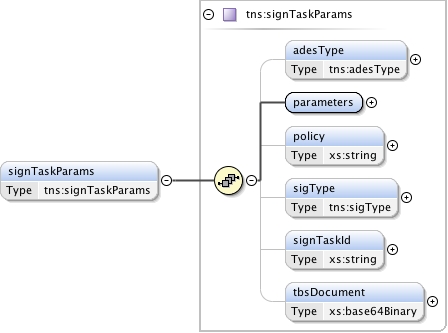

Element tns:signRequestParams / signTaskParams
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signTaskParams_adesType CsSpSupportWs_xsd.tmp#signTaskParams_parameters CsSpSupportWs_xsd.tmp#signTaskParams_policy CsSpSupportWs_xsd.tmp#signTaskParams_sigType CsSpSupportWs_xsd.tmp#signTaskParams_signTaskId CsSpSupportWs_xsd.tmp#signTaskParams_tbsDocument CsSpSupportWs_xsd.tmp#signTaskParams
Type tns:signTaskParams
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
nillable: true
Model adesType{0,1} , parameters , policy{0,1} , sigType{0,1} , signTaskId{0,1} , tbsDocument{0,1}
Children adesType, parameters, policy, sigType, signTaskId, tbsDocument
Instance

<signTaskParams>
  <adesType>{0,1}</adesType>
  <parameters>{1,1}</parameters>
  <policy>{0,1}</policy>
  <sigType>{0,1}</sigType>
  <signTaskId>{0,1}</signTaskId>
  <tbsDocument>{0,1}</tbsDocument>
</signTaskParams>
Source

<xs:element name="signTaskParams" type="tns:signTaskParams" nillable="true" minOccurs="0" maxOccurs="unbounded"/>
Element tns:signTaskParams / adesType
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#adesType
Type tns:adesType
Properties
content: simple
minOccurs: 0
Facets
enumeration None
enumeration BES
enumeration EPES
Source

<xs:element name="adesType" type="tns:adesType" minOccurs="0"/>
Element tns:signTaskParams / parameters
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signTaskParams_signTaskParams_parameters_entry
Properties
content: complex
Model entry*
Children entry
Instance

<parameters>
  <entry>{0,unbounded}</entry>
</parameters>
Source

<xs:element name="parameters">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="key" minOccurs="0" type="xs:string"/>
            <xs:element name="value" minOccurs="0" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signTaskParams / parameters / entry
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signTaskParams_signTaskParams_parameters_signTaskParams_signTaskParams_parameters_entry_key CsSpSupportWs_xsd.tmp#signTaskParams_signTaskParams_parameters_signTaskParams_signTaskParams_parameters_entry_value
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model key{0,1} , value{0,1}
Children key, value
Instance

<entry>
  <key>{0,1}</key>
  <value>{0,1}</value>
</entry>
Source

<xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="key" minOccurs="0" type="xs:string"/>
      <xs:element name="value" minOccurs="0" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:signTaskParams / parameters / entry / key
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="key" minOccurs="0" type="xs:string"/>
Element tns:signTaskParams / parameters / entry / value
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="value" minOccurs="0" type="xs:string"/>
Element tns:signTaskParams / policy
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="policy" type="xs:string" minOccurs="0"/>
Element tns:signTaskParams / sigType
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#sigType
Type tns:sigType
Properties
content: simple
minOccurs: 0
Facets
enumeration XML
enumeration PDF
enumeration XFA
enumeration PDFandXFA
Source

<xs:element name="sigType" type="tns:sigType" minOccurs="0"/>
Element tns:signTaskParams / signTaskId
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="signTaskId" type="xs:string" minOccurs="0"/>
Element tns:signTaskParams / tbsDocument
Namespace No namespace
Diagram
Diagram
Type xs:base64Binary
Properties
content: simple
minOccurs: 0
Source

<xs:element name="tbsDocument" type="xs:base64Binary" minOccurs="0"/>
Element tns:signRequestParams / signerId
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="signerId" type="xs:string" minOccurs="0"/>
Element tns:signRequestParams / signerIdAttr
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="signerIdAttr" type="xs:string" minOccurs="0"/>
Element tns:signRequestResponse
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__signRequestResponse_return CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__signRequestResponse
Type tns:signRequestResponse
Properties
content: complex
Model return{0,1}
Children return
Instance

<tns:signRequestResponse xmlns:tns="http://csspsupport.sigserv.aaasec.com/">
  <return>{0,1}</return>
</tns:signRequestResponse>
Source

<xs:element name="signRequestResponse" type="tns:signRequestResponse"/>

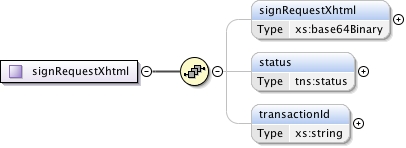

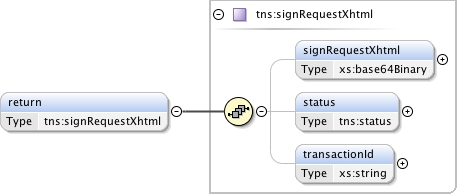

Element tns:signRequestResponse / return
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#signRequestXhtml_signRequestXhtml CsSpSupportWs_xsd.tmp#signRequestXhtml_status CsSpSupportWs_xsd.tmp#signRequestXhtml_transactionId CsSpSupportWs_xsd.tmp#signRequestXhtml
Type tns:signRequestXhtml
Properties
content: complex
minOccurs: 0
Model signRequestXhtml{0,1} , status{0,1} , transactionId{0,1}
Children signRequestXhtml, status, transactionId
Instance

<return>
  <signRequestXhtml>{0,1}</signRequestXhtml>
  <status>{0,1}</status>
  <transactionId>{0,1}</transactionId>
</return>
Source

<xs:element name="return" type="tns:signRequestXhtml" minOccurs="0"/>
Element tns:signRequestXhtml / signRequestXhtml
Namespace No namespace
Diagram
Diagram
Type xs:base64Binary
Properties
content: simple
minOccurs: 0
Source

<xs:element name="signRequestXhtml" type="xs:base64Binary" minOccurs="0"/>
Element tns:signRequestXhtml / status
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#status_statusCode CsSpSupportWs_xsd.tmp#status_statusCodeDescription CsSpSupportWs_xsd.tmp#status_statusGroup CsSpSupportWs_xsd.tmp#status_statusGroupDescription CsSpSupportWs_xsd.tmp#status
Type tns:status
Properties
content: complex
minOccurs: 0
Model statusCode , statusCodeDescription{0,1} , statusGroup , statusGroupDescription{0,1}
Children statusCode, statusCodeDescription, statusGroup, statusGroupDescription
Instance

<status>
  <statusCode>{1,1}</statusCode>
  <statusCodeDescription>{0,1}</statusCodeDescription>
  <statusGroup>{1,1}</statusGroup>
  <statusGroupDescription>{0,1}</statusGroupDescription>
</status>
Source

<xs:element name="status" type="tns:status" minOccurs="0"/>
Element tns:signRequestXhtml / transactionId
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="transactionId" type="xs:string" minOccurs="0"/>

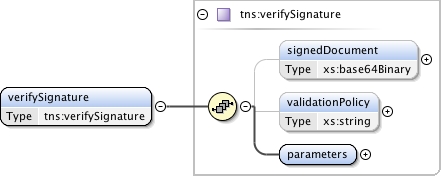

Element tns:verifySignature
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignature_signedDocument CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignature_validationPolicy CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignature_parameters CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignature
Type tns:verifySignature
Properties
content: complex
Model signedDocument{0,1} , validationPolicy{0,1} , parameters
Children parameters, signedDocument, validationPolicy
Instance

<tns:verifySignature xmlns:tns="http://csspsupport.sigserv.aaasec.com/">
  <signedDocument>{0,1}</signedDocument>
  <validationPolicy>{0,1}</validationPolicy>
  <parameters>{1,1}</parameters>
</tns:verifySignature>
Source

<xs:element name="verifySignature" type="tns:verifySignature"/>
Element tns:verifySignature / signedDocument
Namespace No namespace
Diagram
Diagram
Type xs:base64Binary
Properties
content: simple
minOccurs: 0
nillable: true
Source

<xs:element name="signedDocument" type="xs:base64Binary" nillable="true" minOccurs="0"/>
Element tns:verifySignature / validationPolicy
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="validationPolicy" type="xs:string" minOccurs="0"/>
Element tns:verifySignature / parameters
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignature_http___csspsupport.sigserv.aaasec.com__verifySignature_parameters_entry
Properties
content: complex
Model entry*
Children entry
Instance

<parameters>
  <entry>{0,unbounded}</entry>
</parameters>
Source

<xs:element name="parameters">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="key" minOccurs="0" type="xs:string"/>
            <xs:element name="value" minOccurs="0" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:verifySignature / parameters / entry
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignature_http___csspsupport.sigserv.aaasec.com__verifySignature_parameters_http___csspsupport.sigserv.aaasec.com__verifySignature_http___csspsupport.sigserv.aaasec.com__verifySignature_parameters_entry_key CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignature_http___csspsupport.sigserv.aaasec.com__verifySignature_parameters_http___csspsupport.sigserv.aaasec.com__verifySignature_http___csspsupport.sigserv.aaasec.com__verifySignature_parameters_entry_value
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model key{0,1} , value{0,1}
Children key, value
Instance

<entry>
  <key>{0,1}</key>
  <value>{0,1}</value>
</entry>
Source

<xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="key" minOccurs="0" type="xs:string"/>
      <xs:element name="value" minOccurs="0" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element tns:verifySignature / parameters / entry / key
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="key" minOccurs="0" type="xs:string"/>
Element tns:verifySignature / parameters / entry / value
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="value" minOccurs="0" type="xs:string"/>
Element tns:verifySignatureResponse
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignatureResponse_return CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignatureResponse
Type tns:verifySignatureResponse
Properties
content: complex
Model return{0,1}
Children return
Instance

<tns:verifySignatureResponse xmlns:tns="http://csspsupport.sigserv.aaasec.com/">
  <return>{0,1}</return>
</tns:verifySignatureResponse>
Source

<xs:element name="verifySignatureResponse" type="tns:verifySignatureResponse"/>

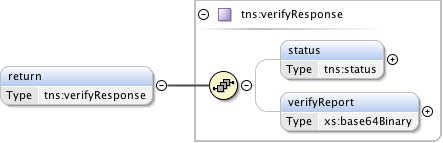

Element tns:verifySignatureResponse / return
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#verifyResponse_status CsSpSupportWs_xsd.tmp#verifyResponse_verifyReport CsSpSupportWs_xsd.tmp#verifyResponse
Type tns:verifyResponse
Properties
content: complex
minOccurs: 0
Model status{0,1} , verifyReport{0,1}
Children status, verifyReport
Instance

<return>
  <status>{0,1}</status>
  <verifyReport>{0,1}</verifyReport>
</return>
Source

<xs:element name="return" type="tns:verifyResponse" minOccurs="0"/>
Element tns:verifyResponse / status
Namespace No namespace
Diagram
Diagram CsSpSupportWs_xsd.tmp#status_statusCode CsSpSupportWs_xsd.tmp#status_statusCodeDescription CsSpSupportWs_xsd.tmp#status_statusGroup CsSpSupportWs_xsd.tmp#status_statusGroupDescription CsSpSupportWs_xsd.tmp#status
Type tns:status
Properties
content: complex
minOccurs: 0
Model statusCode , statusCodeDescription{0,1} , statusGroup , statusGroupDescription{0,1}
Children statusCode, statusCodeDescription, statusGroup, statusGroupDescription
Instance

<status>
  <statusCode>{1,1}</statusCode>
  <statusCodeDescription>{0,1}</statusCodeDescription>
  <statusGroup>{1,1}</statusGroup>
  <statusGroupDescription>{0,1}</statusGroupDescription>
</status>
Source

<xs:element name="status" type="tns:status" minOccurs="0"/>
Element tns:verifyResponse / verifyReport
Namespace No namespace
Diagram
Diagram
Type xs:base64Binary
Properties
content: simple
minOccurs: 0
Source

<xs:element name="verifyReport" type="xs:base64Binary" minOccurs="0"/>
Complex Type tns:completeSigning
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__completeSigning_signResponse
Used by
Element tns:completeSigning
Model signResponse{0,1}
Children signResponse
Source

<xs:complexType name="completeSigning">
  <xs:sequence>
    <xs:element name="signResponse" type="xs:base64Binary" nillable="true" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type tns:completeSigningResponse
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__completeSigningResponse_return
Used by
Element tns:completeSigningResponse
Model return{0,1}
Children return
Source

<xs:complexType name="completeSigningResponse">
  <xs:sequence>
    <xs:element name="return" type="tns:signatureResult" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type tns:signatureResult
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#signatureResult_parameters CsSpSupportWs_xsd.tmp#signatureResult_signTaskResult CsSpSupportWs_xsd.tmp#signatureResult_signerId CsSpSupportWs_xsd.tmp#signatureResult_status CsSpSupportWs_xsd.tmp#signatureResult_transactionId
Used by
Model parameters , signTaskResult* , signerId , status{0,1} , transactionId{0,1}
Children parameters, signTaskResult, signerId, status, transactionId
Source

<xs:complexType name="signatureResult">
  <xs:sequence>
    <xs:element name="parameters">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="key" minOccurs="0" type="xs:string"/>
                <xs:element name="value" minOccurs="0" type="xs:string"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="signTaskResult" type="tns:signTaskResult" nillable="true" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="signerId">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="key" minOccurs="0" type="xs:string"/>
                <xs:element name="value" minOccurs="0" type="xs:string"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="status" type="tns:status" minOccurs="0"/>
    <xs:element name="transactionId" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type tns:signTaskResult
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#signTaskResult_parameters CsSpSupportWs_xsd.tmp#signTaskResult_signTaskId CsSpSupportWs_xsd.tmp#signTaskResult_signedDoc CsSpSupportWs_xsd.tmp#signTaskResult_signedDocRef CsSpSupportWs_xsd.tmp#signTaskResult_status
Used by
Model parameters , signTaskId{0,1} , signedDoc{0,1} , signedDocRef{0,1} , status{0,1}
Children parameters, signTaskId, signedDoc, signedDocRef, status
Source

<xs:complexType name="signTaskResult">
  <xs:sequence>
    <xs:element name="parameters">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="key" minOccurs="0" type="xs:string"/>
                <xs:element name="value" minOccurs="0" type="xs:string"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="signTaskId" type="xs:string" minOccurs="0"/>
    <xs:element name="signedDoc" type="xs:base64Binary" minOccurs="0"/>
    <xs:element name="signedDocRef" type="xs:string" minOccurs="0"/>
    <xs:element name="status" type="tns:status" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type tns:status
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#status_statusCode CsSpSupportWs_xsd.tmp#status_statusCodeDescription CsSpSupportWs_xsd.tmp#status_statusGroup CsSpSupportWs_xsd.tmp#status_statusGroupDescription
Used by
Model statusCode , statusCodeDescription{0,1} , statusGroup , statusGroupDescription{0,1}
Children statusCode, statusCodeDescription, statusGroup, statusGroupDescription
Source

<xs:complexType name="status">
  <xs:sequence>
    <xs:element name="statusCode" type="xs:int"/>
    <xs:element name="statusCodeDescription" type="xs:string" minOccurs="0"/>
    <xs:element name="statusGroup" type="xs:int"/>
    <xs:element name="statusGroupDescription" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type tns:signRequest
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__signRequest_signRequestParams
Used by
Element tns:signRequest
Model signRequestParams{0,1}
Children signRequestParams
Source

<xs:complexType name="signRequest">
  <xs:sequence>
    <xs:element name="signRequestParams" type="tns:signRequestParams" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type tns:signRequestParams
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#signRequestParams_certType CsSpSupportWs_xsd.tmp#signRequestParams_idpEntityId CsSpSupportWs_xsd.tmp#signRequestParams_loa CsSpSupportWs_xsd.tmp#signRequestParams_parameters CsSpSupportWs_xsd.tmp#signRequestParams_properties CsSpSupportWs_xsd.tmp#signRequestParams_signTaskParams CsSpSupportWs_xsd.tmp#signRequestParams_signerId CsSpSupportWs_xsd.tmp#signRequestParams_signerIdAttr
Used by
Model certType{0,1} , idpEntityId{0,1} , loa{0,1} , parameters , properties , signTaskParams* , signerId{0,1} , signerIdAttr{0,1}
Children certType, idpEntityId, loa, parameters, properties, signTaskParams, signerId, signerIdAttr
Source

<xs:complexType name="signRequestParams">
  <xs:sequence>
    <xs:element name="certType" type="tns:certType" minOccurs="0"/>
    <xs:element name="idpEntityId" type="xs:string" minOccurs="0"/>
    <xs:element name="loa" type="tns:signerAuthLoa" minOccurs="0"/>
    <xs:element name="parameters">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="key" minOccurs="0" type="xs:string"/>
                <xs:element name="value" minOccurs="0" type="xs:string"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="properties">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="key" minOccurs="0" type="tns:property"/>
                <xs:element name="value" minOccurs="0" type="xs:string"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="signTaskParams" type="tns:signTaskParams" nillable="true" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="signerId" type="xs:string" minOccurs="0"/>
    <xs:element name="signerIdAttr" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Simple Type tns:certType
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration PKC
enumeration QC
enumeration QC_SSCD
Used by
Source

<xs:simpleType name="certType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="PKC"/>
    <xs:enumeration value="QC"/>
    <xs:enumeration value="QC_SSCD"/>
  </xs:restriction>
</xs:simpleType>
Simple Type tns:signerAuthLoa
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration loa1
enumeration loa2
enumeration loa3
enumeration loa4
Used by
Source

<xs:simpleType name="signerAuthLoa">
  <xs:restriction base="xs:string">
    <xs:enumeration value="loa1"/>
    <xs:enumeration value="loa2"/>
    <xs:enumeration value="loa3"/>
    <xs:enumeration value="loa4"/>
  </xs:restriction>
</xs:simpleType>
Simple Type tns:property
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration returnUrl
enumeration requestedAlgorithm
enumeration signMessage
enumeration spEntityId
enumeration requestedAttributes
Used by
Source

<xs:simpleType name="property">
  <xs:restriction base="xs:string">
    <xs:enumeration value="returnUrl"/>
    <xs:enumeration value="requestedAlgorithm"/>
    <xs:enumeration value="signMessage"/>
    <xs:enumeration value="spEntityId"/>
    <xs:enumeration value="requestedAttributes"/>
  </xs:restriction>
</xs:simpleType>
Complex Type tns:signTaskParams
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#signTaskParams_adesType CsSpSupportWs_xsd.tmp#signTaskParams_parameters CsSpSupportWs_xsd.tmp#signTaskParams_policy CsSpSupportWs_xsd.tmp#signTaskParams_sigType CsSpSupportWs_xsd.tmp#signTaskParams_signTaskId CsSpSupportWs_xsd.tmp#signTaskParams_tbsDocument
Used by
Model adesType{0,1} , parameters , policy{0,1} , sigType{0,1} , signTaskId{0,1} , tbsDocument{0,1}
Children adesType, parameters, policy, sigType, signTaskId, tbsDocument
Source

<xs:complexType name="signTaskParams">
  <xs:sequence>
    <xs:element name="adesType" type="tns:adesType" minOccurs="0"/>
    <xs:element name="parameters">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="key" minOccurs="0" type="xs:string"/>
                <xs:element name="value" minOccurs="0" type="xs:string"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="policy" type="xs:string" minOccurs="0"/>
    <xs:element name="sigType" type="tns:sigType" minOccurs="0"/>
    <xs:element name="signTaskId" type="xs:string" minOccurs="0"/>
    <xs:element name="tbsDocument" type="xs:base64Binary" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Simple Type tns:adesType
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration None
enumeration BES
enumeration EPES
Used by
Source

<xs:simpleType name="adesType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="None"/>
    <xs:enumeration value="BES"/>
    <xs:enumeration value="EPES"/>
  </xs:restriction>
</xs:simpleType>
Simple Type tns:sigType
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration XML
enumeration PDF
enumeration XFA
enumeration PDFandXFA
Used by
Source

<xs:simpleType name="sigType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="XML"/>
    <xs:enumeration value="PDF"/>
    <xs:enumeration value="XFA"/>
    <xs:enumeration value="PDFandXFA"/>
  </xs:restriction>
</xs:simpleType>
Complex Type tns:signRequestResponse
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__signRequestResponse_return
Used by
Element tns:signRequestResponse
Model return{0,1}
Children return
Source

<xs:complexType name="signRequestResponse">
  <xs:sequence>
    <xs:element name="return" type="tns:signRequestXhtml" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type tns:signRequestXhtml
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#signRequestXhtml_signRequestXhtml CsSpSupportWs_xsd.tmp#signRequestXhtml_status CsSpSupportWs_xsd.tmp#signRequestXhtml_transactionId
Used by
Model signRequestXhtml{0,1} , status{0,1} , transactionId{0,1}
Children signRequestXhtml, status, transactionId
Source

<xs:complexType name="signRequestXhtml">
  <xs:sequence>
    <xs:element name="signRequestXhtml" type="xs:base64Binary" minOccurs="0"/>
    <xs:element name="status" type="tns:status" minOccurs="0"/>
    <xs:element name="transactionId" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type tns:verifySignature
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignature_signedDocument CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignature_validationPolicy CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignature_parameters
Used by
Element tns:verifySignature
Model signedDocument{0,1} , validationPolicy{0,1} , parameters
Children parameters, signedDocument, validationPolicy
Source

<xs:complexType name="verifySignature">
  <xs:sequence>
    <xs:element name="signedDocument" type="xs:base64Binary" nillable="true" minOccurs="0"/>
    <xs:element name="validationPolicy" type="xs:string" minOccurs="0"/>
    <xs:element name="parameters">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="entry" minOccurs="0" maxOccurs="unbounded">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="key" minOccurs="0" type="xs:string"/>
                <xs:element name="value" minOccurs="0" type="xs:string"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type tns:verifySignatureResponse
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#http___csspsupport.sigserv.aaasec.com__verifySignatureResponse_return
Used by
Element tns:verifySignatureResponse
Model return{0,1}
Children return
Source

<xs:complexType name="verifySignatureResponse">
  <xs:sequence>
    <xs:element name="return" type="tns:verifyResponse" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type tns:verifyResponse
Namespace http://csspsupport.sigserv.aaasec.com/
Diagram
Diagram CsSpSupportWs_xsd.tmp#verifyResponse_status CsSpSupportWs_xsd.tmp#verifyResponse_verifyReport
Used by
Model status{0,1} , verifyReport{0,1}
Children status, verifyReport
Source

<xs:complexType name="verifyResponse">
  <xs:sequence>
    <xs:element name="status" type="tns:status" minOccurs="0"/>
    <xs:element name="verifyReport" type="xs:base64Binary" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
